API 7K Drilling Rig Parts Rotary Table Used In Oilfield Equipment No-30 manufacturer from China TOPLAND OILFIELD SUPPLIES LTD.

Product Detail

Model No.: No-30

Packing: Standard Packing

Type: Drilling Rig

Means of Transport: Ocean,Land,Air

Delivery Date: According to order

Application: Oil

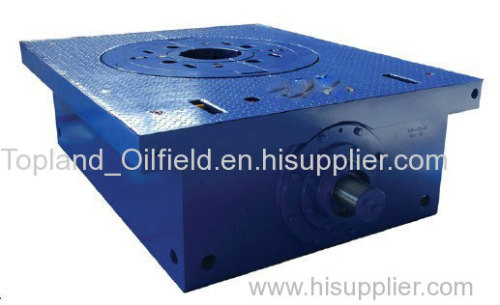

API 7K Drilling Rig Parts Rotary Table Used In Oilfield Equipment

FEATURES

- Both C. Emsco and National Oilwell designs are available.

- The pinion and gear are made of alloy steel.

- The extension and its keyway of the pinion shaft all meet API Spec.

- The master bushing is made of steel casting with API Standard square Kelly or Hexagonal Kelly as per Varco designs.

- Mechanical and electrical independent table drives can be furnished.

-The rotary table conform to API Spec 7K and are granted to use API monogram.

ROTARY TABLE PARAMETER LIST

Model	Unit	ZP175	ZP205	ZP275	ZP375
Dia. Of opening	mm(in)	444.5(17-1/2)	520.7(20-1/2)	698.5(27-1/2)	952.5(37-1/2)
Table axis to center inner row sprocket teeth	mm(in)	1118(44)	1353(53-1/4)	1353(53-1/4)	1353(53-1/4)
Max. static load	KN	1350	3150	4500	5850
Max. working torque	Nm	14000	22555	28000	33000
Max. speed	r/min	300	350	250	300
Gear ratio		3.58	3.22	3.67	3.56
Overall dimension	mm	1935x1280x585	2292x1475x668	2392x1670x685	2468x1810x718
Weight	Kg	3888	5530	6163	8020
